GC 12x40S

12x40 Mesh Activated Carbon
GC 12x40S Activated Carbon

Granular Coconut Shell Activated Carbon

GC 12x40S is a virgin activated carbon which is granular in form. Made from selected grades of coconut shell, it is ideal for many liquid phase applications including the removal of organics from water streams. Its superior level of hardness makes it cleaner than most other carbons and gives it longer life expectancy. Manufactured at an NSF/ANSI standard certified facility, it is suitable for drinking water and food grade applications.


Mesh Size – 12×40, %: 90 (min)
Greater than No. 12, %: 5 (max)
Less than No. 40, %: 5 (max)
Iodine No., mg/g: 1100 (min)
Surface Area, m2/g: 1100 (min)
Hardness, %: 98 (min)
Ash Total, %: 4.0 (max)
Moisture, % (as packaged): 5.0 (max)
Typical Density, lbs./ft.3: 29 – 33
                            g/cc: 0.46 – 0.53

*Standard packaging is in 55 lb. vinyl bags. Other packaging is available upon request.

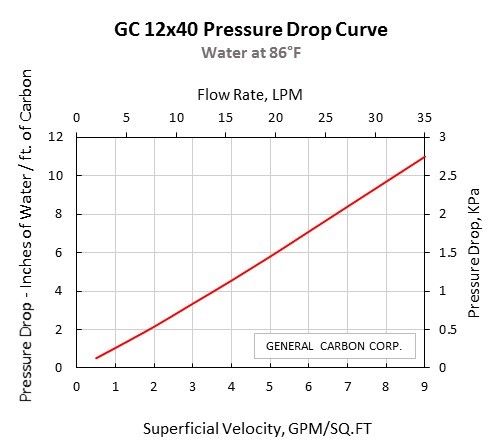

GC 12x40 Pressure Drop Curve


Wet activated carbon removes oxygen from air causing a severe hazard to workers inside carbon vessels. Confined space/low oxygen procedures should be put in place before any entry is made. Such procedures should comply with all applicable Local, State and Federal guidelines.
